Product Overview

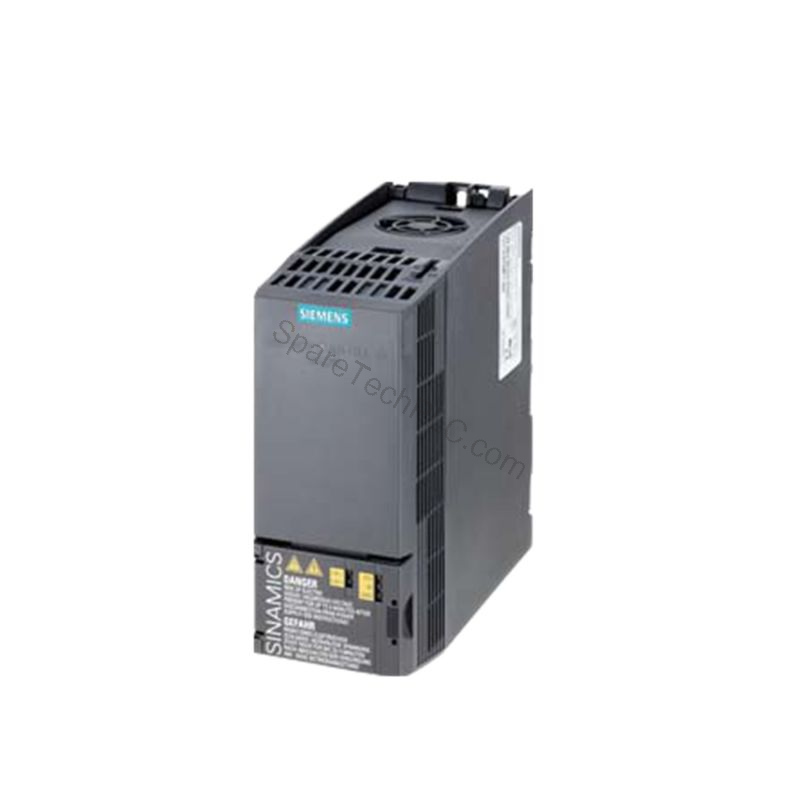

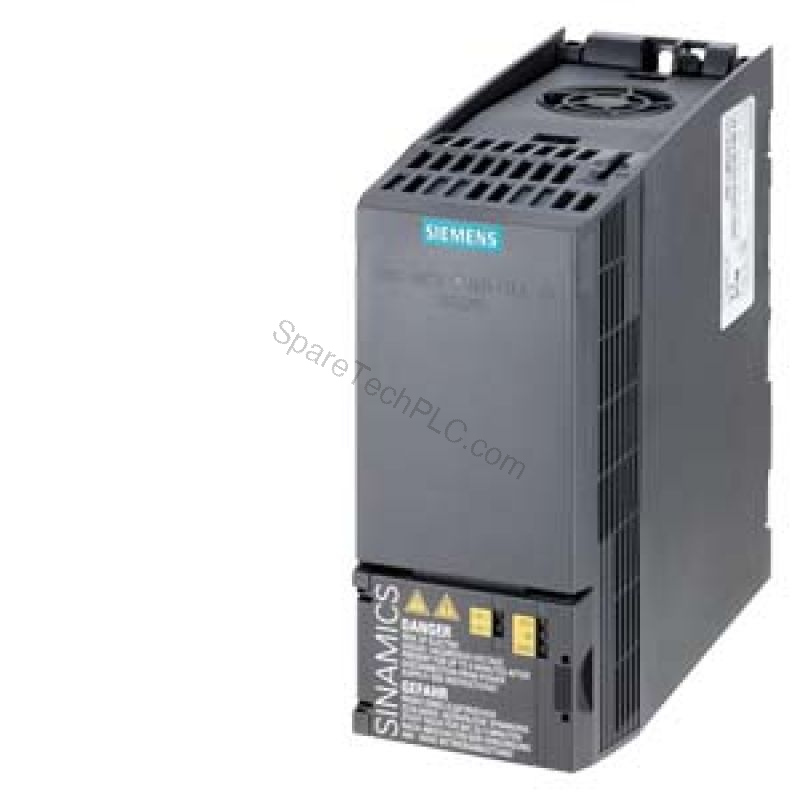

The 6SL3210-1KE13-2UF2 is a Siemens Frame size FSAA drive designed for industrial automation. It operates on a 3 AC input line voltage of 380 to 480 V with a line frequency of 47 to 63 Hz. This unit supports both low overload (LO) and high overload (HO) modes, providing rated currents of 4.10 A and 3.20 A respectively. Furthermore, it features integrated PROFINET and EtherNet/IP communication for seamless network integration. As a result, the 6SL3210-1KE13-2UF2 is a reliable choice for motor control applications.

Key Features and Technical Specifications

• Input: 3 AC, 380-480 V +10% -20%, 47-63 Hz.
• Rated current LO: 4.10 A; HO: 3.20 A.
• Output: 3 AC, rated voltage 400V IEC / 480V NEC.
• Rated power LO: 1.10 kW (1.50 hp); HO: 0.75 kW (1.00 hp).
• Max output current: 4.40 A; pulse frequency: 4 kHz.
• Output frequency: vector control 0-240 Hz; V/f control 0-550 Hz.
• Overload capability: LO 150% for 3s, then 110% for 57s; HO 200% for 3s, then 150% for 57s.
• Efficiency: 0.97; power loss: 48.1 W; sound pressure: 49 dB.
• Communication: PROFINET, EtherNet/IP.
• Digital inputs: 6 standard (11 V switching) plus 1 fail-safe.
• Digital outputs: 1 relay changeover contact, 1 transistor (DC 30 V, 0.5 A).
• Analog input: 1 differential (10-bit); analog output: 1 non-isolated.
• PTC/KTY interface for motor temperature sensor.
• Control techniques: V/f linear/square-law, FCC, ECO, sensorless vector control.
• Cooling: air cooling with integrated fan; air requirement 0.005 m³/s.
• Ambient temperature operation: -10 to 40 °C; transport/storage: -40 to 70 °C.
• Connections: plug-in screw terminals for line, motor, DC link; conductor cross-section 1.00-2.50 mm².
• Max motor cable length: shielded/unshielded 150 m.
• Degree of protection: IP20 / UL open type; weight: 1.40 kg.
• Dimensions: 73x173x160 mm (WxHxD).
• Standards: UL, cUL, CE, C-Tick (RCM); efficiency class IE2.

Applications and Use Cases

The 6SL3210-1KE13-2UF2 is suitable for driving three-phase AC motors in industrial environments. For example, it can be used in conveyor systems, pumps, and fans that require precise speed control. Additionally, its compact Frame size FSAA makes it ideal for space-constrained installations. Consequently, this drive supports both V/f and sensorless vector control for versatile performance.

Frequently Asked Questions (FAQ) about 6SL3210-1KE13-2UF2

Q: What is the input voltage range for the 6SL3210-1KE13-2UF2?

A: The input voltage range is 380 to 480 V AC +10% -20%.

Q: What communication protocols does this drive support?

A: It supports PROFINET and EtherNet/IP.

Q: What is the maximum output current of the 6SL3210-1KE13-2UF2?

A: The maximum output current is 4.40 A.

Q: Does the drive include an integrated filter?

A: No, the filter class is unfiltered.

Q: What is the efficiency class of this converter?

A: The efficiency class is IE2.

Q: What is the net weight of the 6SL3210-1KE13-2UF2?

A: The net weight is 1.40 kg.

Product Support and Availability

The 6SL3210-1KE13-2UF2 is in stock and ready to ship from SpareTechPLC. Our team can provide additional technical support for this Siemens Frame size FSAA drive. Contact SpareTechPLC for ordering and availability details.
